Solar flat ballast mounting systems

Description of Ballasted Solar Racking

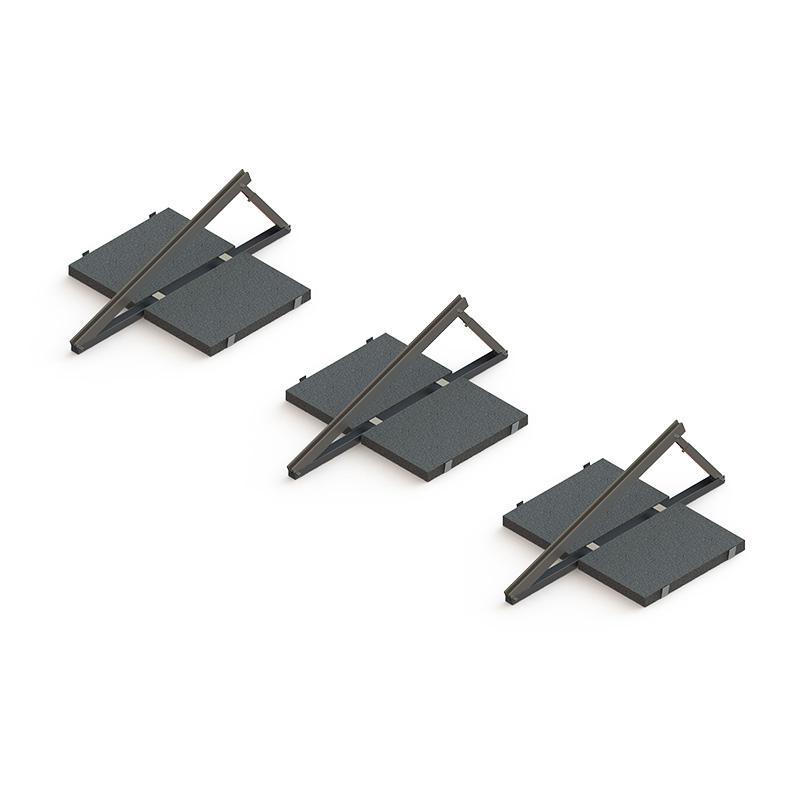

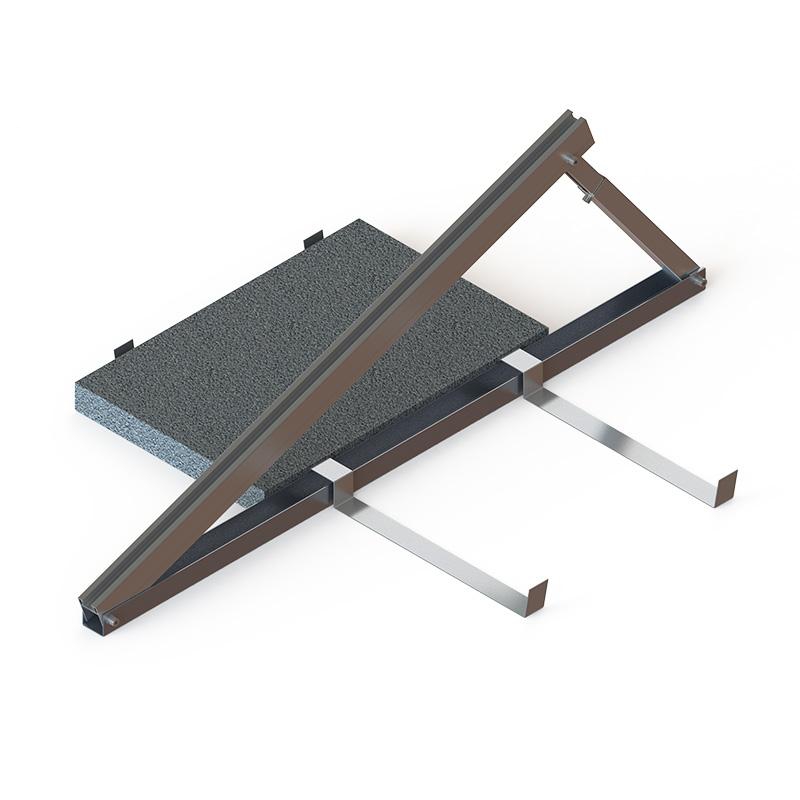

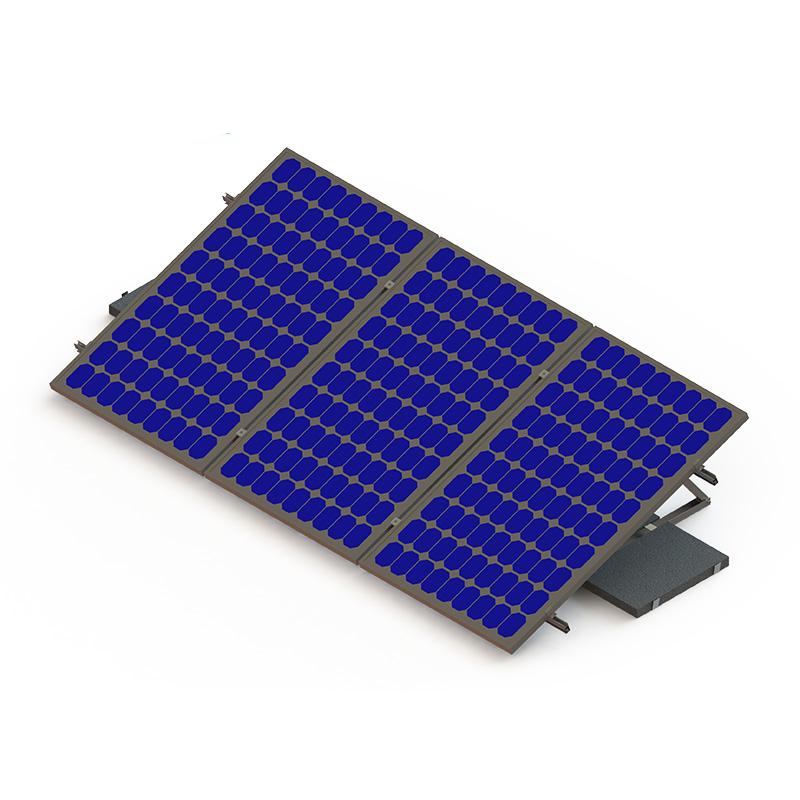

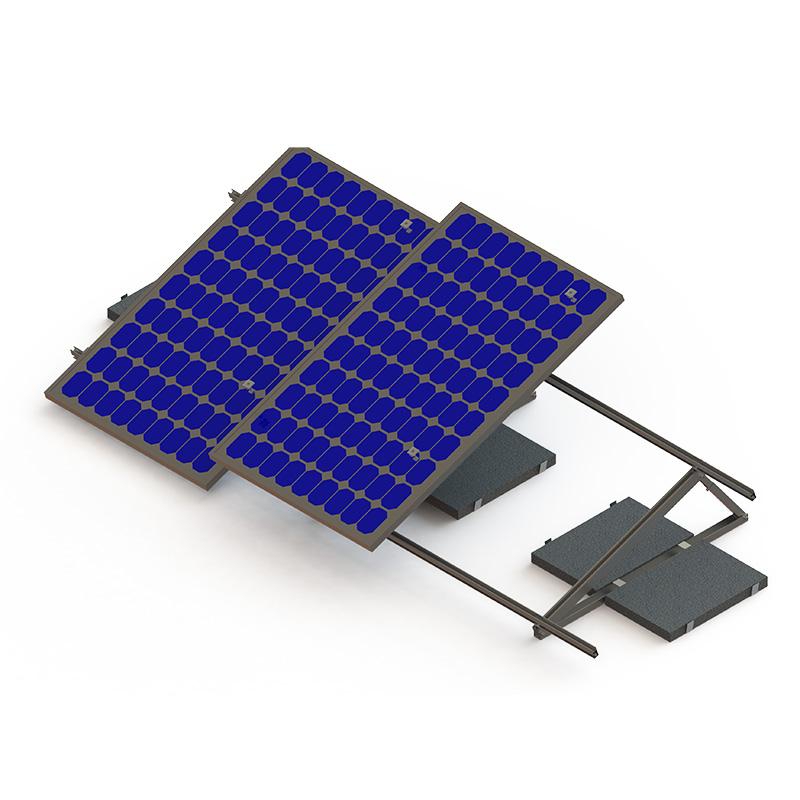

The flat roof solar racking are applicable to large scale flat roof solar panel installation. It allows solar array to tilt angle 5-30 degrees with the rooftop. The flat roof ballasted solar racking can be pre-designed a fixed angle or use adjustable brackets for customer’s requests. They can be mounted directly on the concrete rooftop or mounted on blocks. The extruded aluminum olar mounting kits are highly pre-assembled to make the whole installation easy and quick to save labor time and cost.

Parameter of Ballasted solar ground mount

Overview of Ballasted Solar Racking

Information Needed to Make Mounting Solution for solar ballast mounting systems

1. Solar panel quantity and dimension (length * width * thickness)

2. Solar panel direction (horizontal or portrait)

3. Max wind load? And snow load?

4. Solar panel layout (rows*lines)

5. Roof shape and size (If you have roof drawing it will be best)

Our advantage:

1. Short delivery times and low freight costs
2. We have owner factory that you can get the factory price from us.
3. Economical and precise production with valuable materials.
4. All our mounting systems have been carefully designed and innovated by our very own PV research and development team.

FAQ:

*How do solar panels get attached to a roof?

The solar panel mounting system uses the rails and brackets to tie the solar power system to the roof frame.

The aluminum middle clamps hold panel frames on the railing in between panels.

The aluminum end clamps hold panel frames on the railing at each end of the row.

Solar pv rails support of solar modules on the roof by footings or brackets.
